2500mm 2000mm Insulating Glass Processing Machine With Pressing Function

2500mm 2000mm Insulating Glass Processing Machine With Pressing Function
2500mm 2000mm Insulating Glass Processing Machine With Pressing Function 2500mm 2000mm Insulating Glass Processing Machine With Pressing Function

Large Image :  2500mm 2000mm Insulating Glass Processing Machine With Pressing Function

Product Details:
Place of Origin: JINAN, CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJBZ2535
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Container
Delivery Time: 60days
Supply Ability: 20 sets per month

2500mm 2000mm Insulating Glass Processing Machine With Pressing Function

Description
Production Nam: Insulating Glass Processing Line Power: 40kw
Max Glass Size: 2500*3500mm Glass Thickness: 3 - 18mm
Insulating Glass Thickness: 60mm Motor: Simens
Gas Content: >90% Function: Pressing Function
High Light:

double glazing production

,

insulating glass line

LJBZ2535 Insulating Glass Processing Machine With Pressing and Filling double IG units

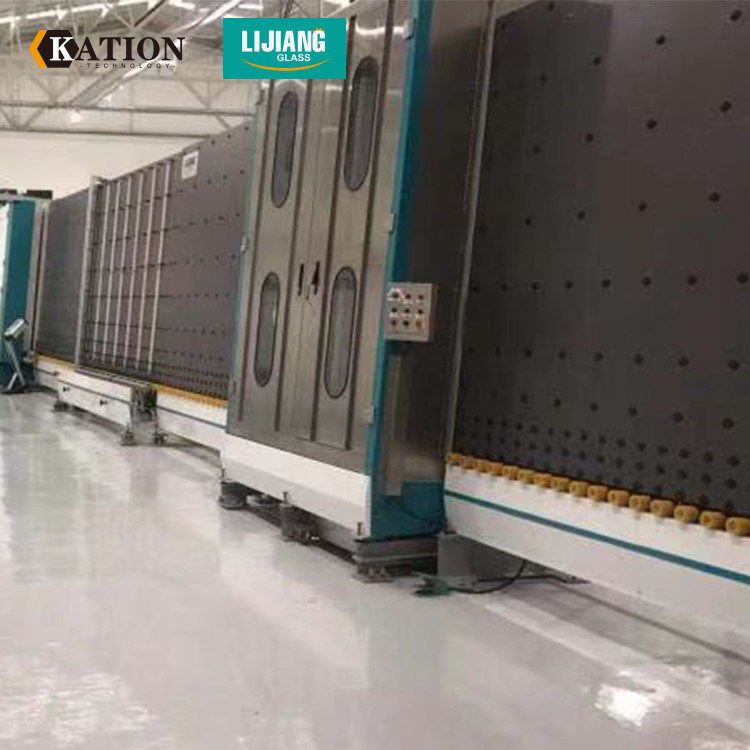

The automatic insulating glass processing line is used to making double glass, triple glass and step glass for windows, doors, buildings, ships, high-speed train windows and so on. Insulating glass processing line contains the glass washing machine, the pressing and filling gas machine. Now, we have normal IG line without filling gas, IG line with filling gas, IG line with air floating and super fast speed IG line with filling gas.

2500mm 2000mm Insulating Glass Processing Machine With Pressing Function 0



Main Features:

• The line has 7 sections: 01 transfer section; 02 washing machine; 03 discharge section; 04 inspection and installation section; 05 transfer section; 06 pressing and filling section; 07 discharge section

• PLC control system, touch screen interface

• Using Siemens servo motors

• Applicable to produce double glass, triple glass

• Step glass with optional edges and shaped glass



Details introduce of the LJBZ2535

01 transfer section

Coating detection mechanism, automatic detection of offline Low-e film

2500mm 2000mm Insulating Glass Processing Machine With Pressing Function 1

02 washing machine

2500mm 2000mm Insulating Glass Processing Machine With Pressing Function 2



Main feature:

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material



03 discharge section

• Storage glass



04 inspection and installation section

The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass

2500mm 2000mm Insulating Glass Processing Machine With Pressing Function 3

05 transfer section

• Automatic measurement of glass thickness. It can be used according to actual needs when working.

2500mm 2000mm Insulating Glass Processing Machine With Pressing Function 4



06 pressing and filling section

2500mm 2000mm Insulating Glass Processing Machine With Pressing Function 5

Main feature:

• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice

• Adopts conveyor belt to transfer glass, uses servo motor to press glass

• The pressing plate can be opened for easy maintenance

• Pressing board with adjustable structure to guarantee long-lasting service life

2500mm 2000mm Insulating Glass Processing Machine With Pressing Function 6



07 discharge section

• Storage glass

• Can be connected to sealing machine

Technical data

Max. glass size 2500mm*3500mm
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg
