PLC Control Insulating Glass Production Line For Double Glass , Triple Glass

PLC Control Insulating Glass Production Line For Double Glass , Triple Glass
PLC Control Insulating Glass Production Line For Double Glass , Triple Glass PLC Control Insulating Glass Production Line For Double Glass , Triple Glass PLC Control Insulating Glass Production Line For Double Glass , Triple Glass PLC Control Insulating Glass Production Line For Double Glass , Triple Glass

Large Image :  PLC Control Insulating Glass Production Line For Double Glass , Triple Glass

Product Details:
Place of Origin: JINAN, CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJBZ2535G
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Container
Delivery Time: 60days
Supply Ability: 20 sets per month

PLC Control Insulating Glass Production Line For Double Glass , Triple Glass

Description
Production Nam: Insulating Glass Processing Line Application: Double Glass , Triple Glass
Max Glass Size: 2500*3500mm Max Filling Gas Size: 2500*3200mm
Control: PLC Control Insulating Glass Thickness: 60mm
Motor: Simens Gas Content: >90%
High Light:

double glazing production

,

insulating glass line

LJBZ2535G Automatic Insulating Glass Processing Machine With Filling Argon Gas Online



Main Features:

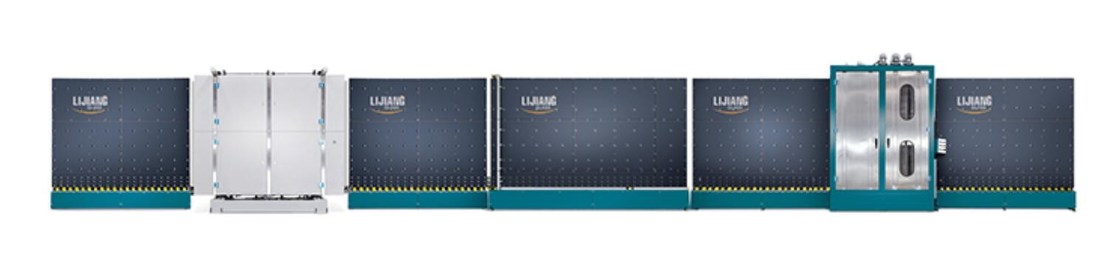

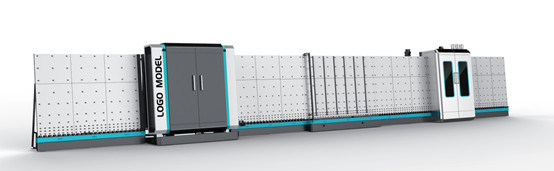

• The line has 7 sections: 01 transfer section; 02 washing machine; 03 discharge section; 04 inspection and installation section; 05 transfer section; 06 pressing and filling section; 07 discharge section

• PLC control system, touch screen interface

• Using Siemens servo motors

• Applicable to produce double glass, triple glass

• Step glass with optional edges and shaped glass

PLC Control Insulating Glass Production Line For Double Glass , Triple Glass 0





Details introduce of the LJBZ2535G

01 transfer section

Coating detection mechanism, automatic detection of offline Low-e film

PLC Control Insulating Glass Production Line For Double Glass , Triple Glass 1

02 washing machine

PLC Control Insulating Glass Production Line For Double Glass , Triple Glass 2



Main feature:

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material



03 discharge section

• Storage glass



04 inspection and installation section

The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass

PLC Control Insulating Glass Production Line For Double Glass , Triple Glass 3

05 transfer section

• Automatic measurement of glass thickness. It can be used according to actual needs when working.

PLC Control Insulating Glass Production Line For Double Glass , Triple Glass 4



06 pressing and filling section

PLC Control Insulating Glass Production Line For Double Glass , Triple Glass 5

Main feature:

• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice

• Adopts conveyor belt to transfer glass, uses servo motor to press glass

• The pressing plate can be opened for easy maintenance

• Pressing board with adjustable structure to guarantee long-lasting service life

PLC Control Insulating Glass Production Line For Double Glass , Triple Glass 6

• Automatically fill argon gas with significant sealing effect, higher argon content

• Set zones to fill different size of glass with follow-up sealing method reduces argon loss

• Can set gas value and show the process of filling gas on the touch screen

PLC Control Insulating Glass Production Line For Double Glass , Triple Glass 7



• Fast reacting sensor for permanent control of gas filling process

• Gas concentration can reach more than 90%

• No need to drill holes on the spacer frame

• Standard gas is Argon gas

07 discharge section

• Storage glass

• Can be connected to sealing machine

Technical data

Max. glass size 2500mm*3500mm
Max glass size for filling gas 2500mm*3200mm
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg

Electrical parameters



NAME ORIGIN BRAND
Servo motor Germany SIEMENS
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Transfer motor Taiwan LINHAI
Brush motor Taiwan LINHAI
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
Electric gauge China MIRAN
Photoelectric switch Germany SICK
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
IG line with gas filling online
