Product Details:
|
| NAME: | Automaitic Butyl Extruder Machine | Coating Speed: | 5-47m/min |
|---|---|---|---|
| Aluminum Spacer Width: | 6A-27A | Diameter Of Butyl Cylinder: | 200mm |
| Feature: | Powerful | ||
| High Light: | hot melt butyl extruder,butyl silicone sealant |
||
Powerful Hot Melt Butyl Machine / Butyl Extruder Machine For Insulting Production Line

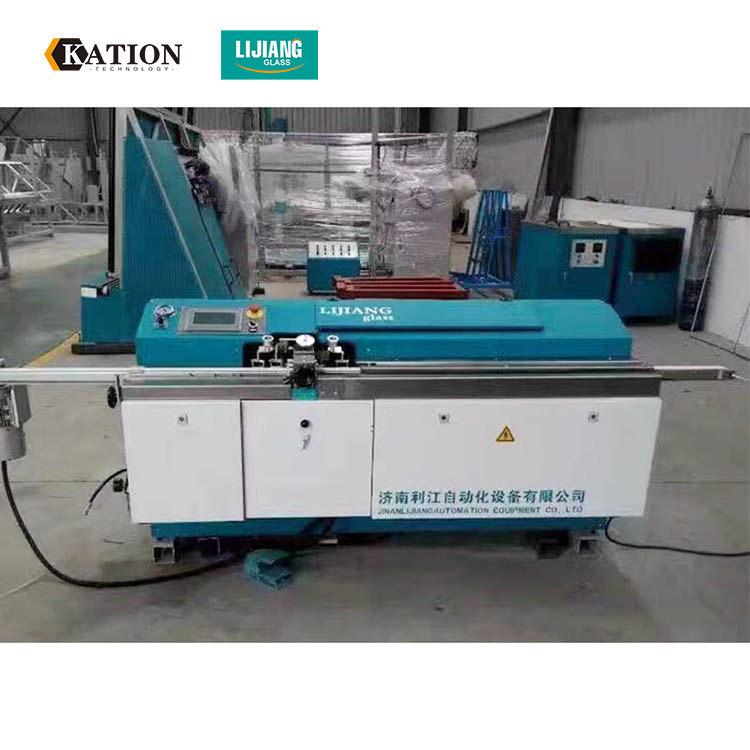

The type of LJTB01 Automatic butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl.
Automatic butyl extruder machine use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min.
Automatic butyl extruder machine is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure.
The distance of squeezing head in the Automatic butyl extruder machine can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.
Automatic butyl extruder machine adopt KINCO Touch Screen,Clear interface,Simple operation,Smart touch screen,Updated programming.
Automatic butyl extruder machine Adopt Germany’s Harvey valve, more stable performance.
The supercharging system in the Automatic butyl extruder machine adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.
Automatic butyl extruder machine Adopt Siemens brand, extending working life, stable performance.
Automatic butyl extruder machine Adopt the special structure, easy to change butyl.
Automatic butyl extruder machine can Automatically measure the width of frame, use guiding wheel to help arc frames coating.
Automatic butyl extruder machine Using non-adhesive belt, keep quickly coating speed, saving a lot butyl.
Automatic butyl extruder machine have Automatic exhaust function, keep spreading butyl constantly and evenly without bubbles.
We can also provide suitable butyl glue if customers need.
Technical Data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
