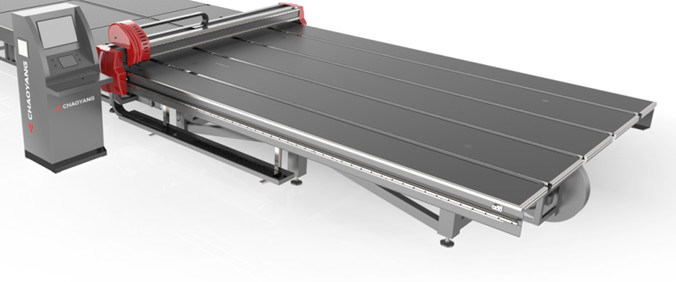

Automated CNC Glass Cutting Machine Used In Hollow Glass Production Line

Automated CNC Glass Cutting Machine Used In Hollow Glass Production Line
Automated CNC Glass Cutting Machine Used In Hollow Glass Production Line Automated CNC Glass Cutting Machine Used In Hollow Glass Production Line

Large Image :  Automated CNC Glass Cutting Machine Used In Hollow Glass Production Line

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable

Automated CNC Glass Cutting Machine Used In Hollow Glass Production Line

Description
Name: Automatic Glass Cutting Machine Cutting Precision: ≤±0.30mm
Max.cutting Size: 3660×2750mm Min.cutting Size: 100×100mm
Glass Thickness : 3~19mm Cutting Speed: Max100m/min
High Light:

insulated glass equipment

,

glass making machine

Automatic Glass cutting machine used in hollow glass production line



Automatic Cutting table





Automatic glass cutting machine consists of chassis mechanism, beam mechanism, worktable mechanism, cutting knife mechanism, conveying mechanism, photoelectric scanning positioning mechanism and electrical control system.



Automatic glass cutting machine  working principle




Automatic glass cutting machineis to convey the cut glass by conveying belt to worktable, automatically input the position of glass through photoelectric scanning system, and then the cutting head with diamond wheel on the cutter holder moves along X and Y directions respectively by program control, cut the sheet. CNC motion controller is used in the control part of the machine, and advanced AC servo motor is used in the drive part.



technical parameter

cutting precision ≤±0.30mm
max.cutting size 3660×2750mm
min.cutting size 100×100mm
glass thickness 3~19mm
cutting speed max100m/min
working table height 930±25mm
cutting table height 4710×3250×930mm
cutting table dimension 1500kg
loading table transport speed 40m/min
loading table tilting speed 7m/min
loading table forward distance 1000mm
loading table max.absorb size 3660×2750mm
loading table min.absorb size 1800×1800mm
loading table dimension (odd station) 6000×3900×930mm
max. thickness of glass packing 800mm
min.glass nog height 240mm
breaking table dimension 4200×3000×930mm
