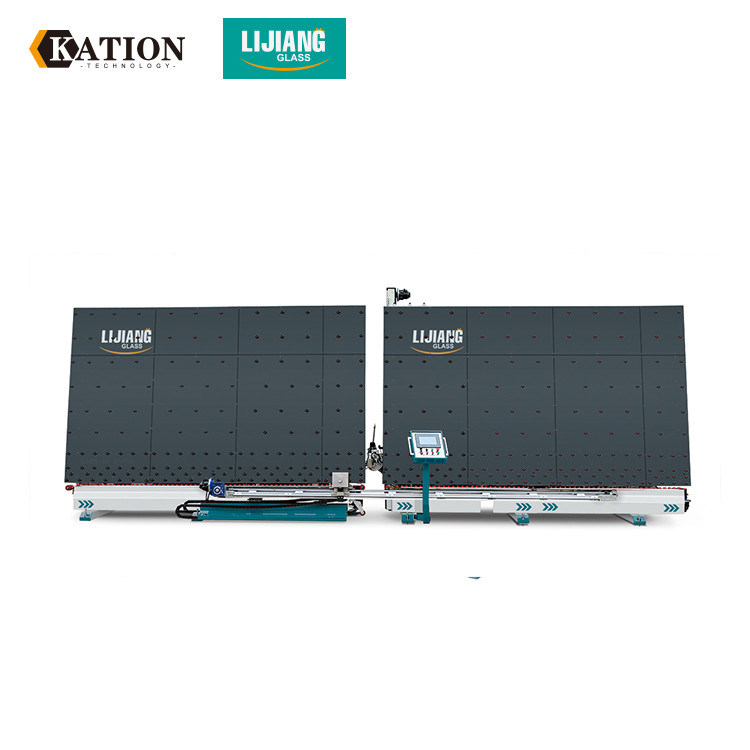

Product Details:
|
| Name: | Insulating Glass Sealing Robot | Working Speed: | 5-40m/min |
|---|---|---|---|
| Pump: | One/double | System: | ANCHUAN Servo Control System |
| Max.glass Size: | 2500mm*4000 | Min.glass Size: | 300*300mm |
| Glass Thickness: | 12-56mm | ||
| High Light: | glass sealing machine,silicone extruder machine |
||
Application
. Whole machine adopt manmachine interface, the operation is more convenient and intuition with the simplified thinking design interface.
. The glass edge and corner is full without air bubbles, smooth surface, no need to pare the corner the condition that the glass are cut levelly and without dislocation after combined.
. High automation, high efficiency, suitable for glass deep processing enterprise to use.
. Using two sets of independent sealant supply system( including the mixing device), two kinds of sealants switch in one-key operation easily.(optional)
. The third section can pre-store glass to improve the efficiency effectively
. Servo control system adopts world famous brand(Japan Anchuan), the performance is stable
. Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning
. The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability.
. Support three layer glass sealant
Shaped Glass and Triple Function (Optional)
With the development of updating technology, the sealing robot can coat 8 shaped glasses according to the glass market.
Stepped glass (Optional)
We put the machine head in the front, it will more convenient to making stepped IG units. It can connect with the IG line.
| Max.glass size | 2500mm |
| Min.glass size | 170mm*400mm (2000mm machine) |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
| Name | Brand |
| Switch | SIEMENS |
| Servo motor | Japan YASKAWA |
| I/O model | Japan MSYSTEM |
| Lower voltage component | Siemens |
| CPU | Japan YASKAWA |
| Frequency converter | Japan OMRON |
| Switching power supply | Taiwan MW |
| Pneumatic component | Japan SMC |
| PLC | Siemens |
| Guideway | Siemens |
