Product Details:
|
| NAME: | Butyl Extruder Machine | Coating Speed: | 5-47m/min |
|---|---|---|---|
| Aluminum Spacer Width: | 6A-27A | ||
| High Light: | hot melt butyl extruder,butyl silicone sealant |
||
² Application

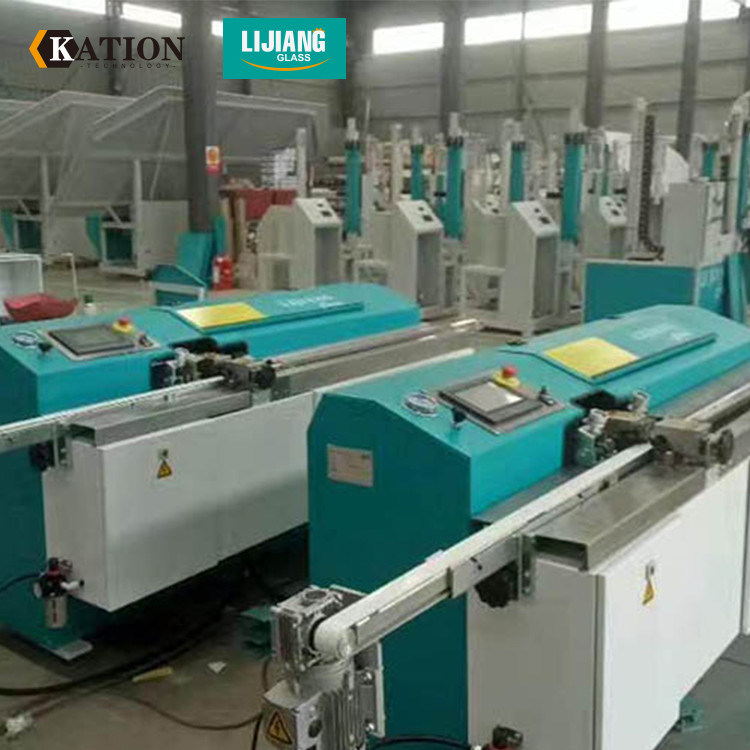

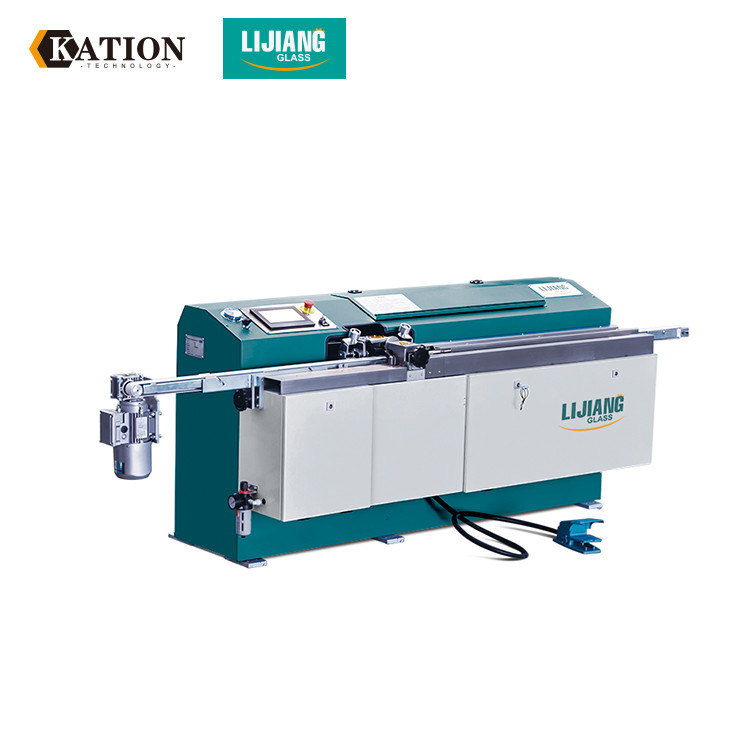

The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.
² Equipment details
KINCO Touch Screen
Clear interface,Simple operation,Smart touch screen,Updated programming.
Germany Harvey Valve
Adopt Germany’s Harvey valve, more stable performance.
Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.
Germany Siemens spares
Adopt Siemens brand, extending working life, stable performance.
Upright Glue Cylinder
Adopt the special structure, easy to change butyl.
Unique Guiding Wheel
Automatically measure the width of frame, use guiding wheel to help arc frames coating.
Teflon Belt
Using non-adhesive belt, keep quickly coating speed, saving a lot butyl.
Sensor
Recognize the spacer’s size automatically
Special Structure
Automatic exhaust function, keep spreading butyl constantly and evenly without bubbles.
Shaped &Large profile
Spacer size width: 4-30mm(more large size can be optional)
Butyl
We can also provide suitable butyl glue if customers need.
² Other features
1. Filter out debris automatically through auto exhaust, keep spreading quickly and evenly.
2. Quickly speed of warming, improve work effect.
3. Adjustable coating speed, can up to 0-47m/min.
4. Can save about 40% materials, only 5g/m.
5. Extruder head height adjustment structure.
6. Automatic centering and clamping structure.
7. Stable temperature and it is convenient to adjust the sealing material automatically.
² Technical Data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
