Product Details:
|
| Name: | Desiccant Filling Machine | Filling Aluminum Frame’s Maximum Size: | 2500mm*2500mm |
|---|---|---|---|
| Filling Aluminum Frame’s Minimal Size: | 300mm*250mm | Article Aluminum Specifications: | 5.5-24mm |
| Air Source: | ≥0.65MPa | Power Supply And Power Consumption: | AC220V 50Hz 1.8KW |
| High Light: | desiccant filler,automatic filling machine |
||

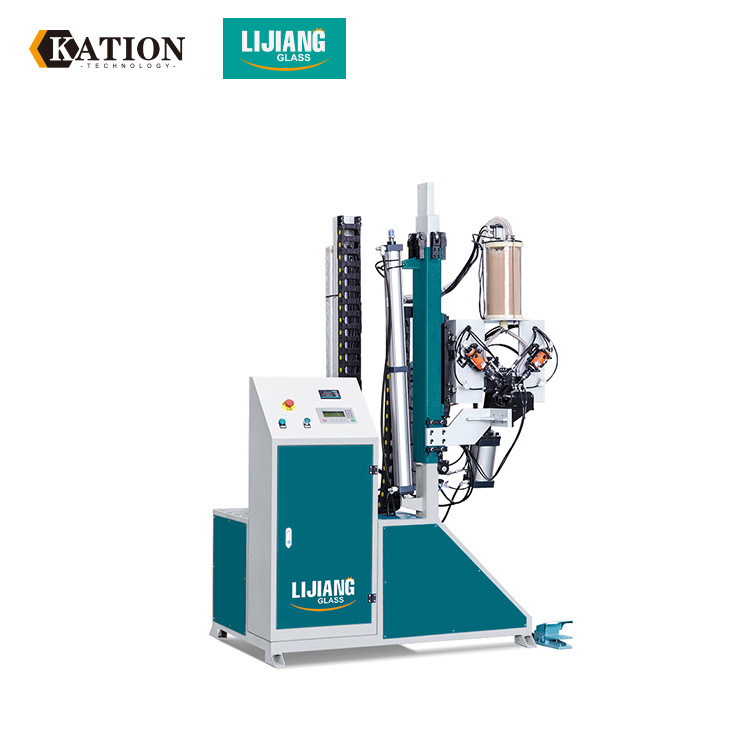

High Speed Desiccant Filling Machine For Insulating Glass AC220V 50Hz 1.8KW
Desiccant Filling Machine Main feature
· Germany Siemens PLC control system
· Touching screen interface, simple and visible
· Fill for bending frame and connected frame
· Auto desiccant loading function
· Filling time can be adjusted
· Auto drilling, filling and sealing function
Desiccant Filling Machine Main technical parameter
| Name | Brand | Name | Brand |
| PLC | German SIEMENS | Triplet | TAIWAN AIRTAC |
| Low voltage electrical apparatus | German SIEMENS | Solenoid valve | TAIWAN AIRTAC |
| Sensor | Korea AUTONICS | Gas driller | Taiwan BOA |
| Guide | Taiwan TBI | Switch power | Taiwan TEND |
| Filling aluminum frame’s maximum size | 2000mm*2000mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
Desiccant Filling Machine APPLICATION
Desiccant Filling Machine can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant. Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. Desiccant Filling Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.
Desiccant Filling Machine Details
