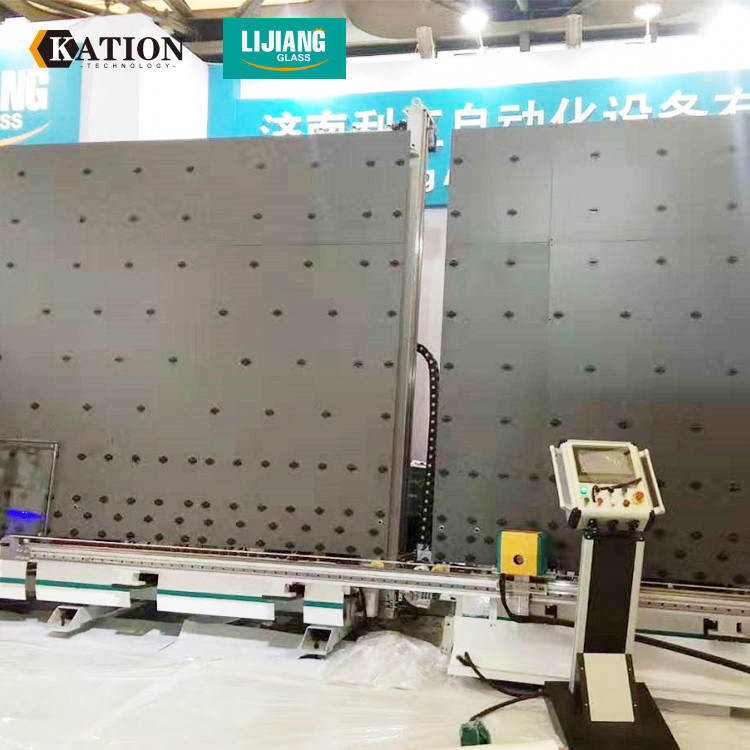

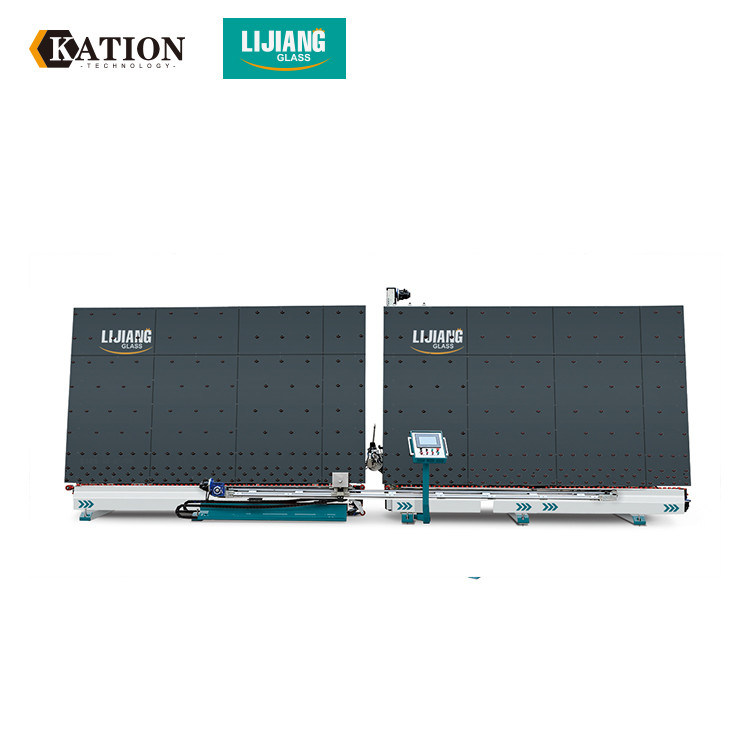

| NAME: | Insulating Glass Sealing Robot | Working Speed: | 5-40m/min |
|---|---|---|---|
| Max.Glass Size: | 2500*4000mm | Min. Glass Size: | 300*300mm |
| Glass Thickness: | 12-50mm | ||
| High Light: | insulated glass equipment,glass making machine |
||
Main feature
n Can coat many shaped glass(triangle glass,hexagon glass,trapezoidal glass,arc glass,train glass and so on) stepped glass
n Can coat triple glass by one time
n Fast reacting and volume controlled dosing system for IG glass, 2-component sealant
n The glass edge and corner is full without air bubbles, smooth surface, no need to repair the corner
n Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning
n Electric and compressed air switch valve:Ensure electrical automatic switch, stable performance and uniform coating.
n Japan YASKAWA servo motor and CPU,Siemens low-voltage electrical appliances.
Main technical parameter
| Max.glass size | 2000*2500mm |
| Min.glass size | 300*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.5-0.7MPa |
| Squeeze pressure | 32MPa |
| Overall dimension | 8000*1500*2700mm |
Main components list
| Servo motor | Japan Yaskawa |
| Servo driver | Japan Yaskawa |
| CPU | Japan Yaskawa |
| Low voltage component | Siemens |
| Guideway | Taiwan Hiwin |
| Switching power supply | Taiwan MW |
| Optoelectronic switch | Korea Autonics |
| Pneumatic component | Taiwan Airtac |
| Touch screen | Taiwan Wenview |
| Travel switch | Taiwan Tiande |
