Product Details:
|
| Name: | Butyl Extruder Machine | Speed: | 0-47m/min |
|---|---|---|---|
| Glue Cylinder: | Upright Structure | Valve: | Germany HAVE Valve |
| Glue Nuzzle: | TEFLON | Squeeze Pressure: | 10-18MPa |
| Temperature: | 110~140℃ | Aluminum Spacer Width: | 4-30mm |
| High Light: | glass sealing machine,silicone extruder machine |
||

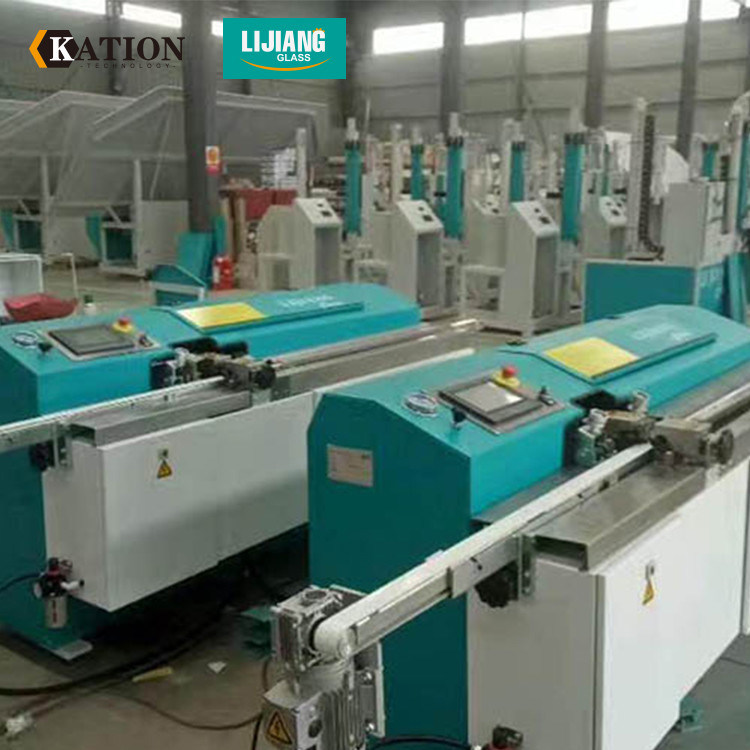

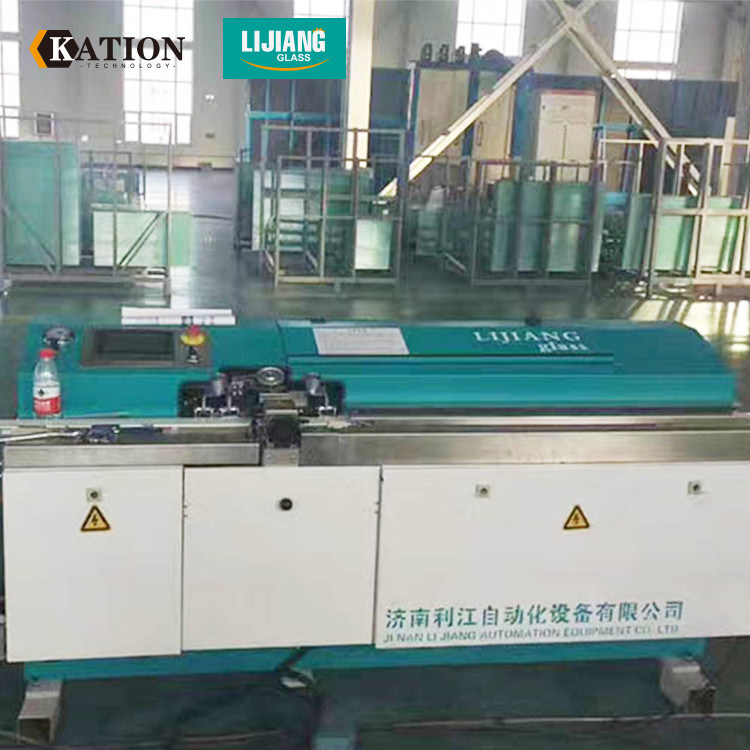

Automatic Butyl Extruder MachineLJTB01
Application
LJTB 01 Automatic butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The butyl extruder uses large electrical control panel which makes the operation more easier than before. The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now. The butyl extruder is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier. The height of squeezing head can be adjusted automatically according to different kinds of aluminum spacers. Finally, the butyl extruder has reached the worldwide technology with the characteristic of complete functions and stable working mode.
Equipment details
KINCO Touch Screen
Clear interface, Simple operation, Smart touch screen,Updated programming.
Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
Alarm system
Automatically alarm system, reminding adding butyl.
Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.
Germany Siemens parts
Adopt Siemens brand, stable performance.
Glue cylinder
Adopt the upright structure, easy to change butyl.
Guiding Wheel
Using guiding wheel to help arc frames coating.
Sensor
Automatically measure the width of frame, the distance of nozzle can be adjustable.
TEFLON glue nozzles
Adopt Teflon glue nozzles, keep spreading quickly.
Special material Belt
Using non-adhesive belt, keep clean.
Crossbeam adjustable structure
Crossbeam adjustable structure controls the spreading height.
Automatic filter function
Automatically filter debris, keep spreading evently.
Special structure
The special part controls both sides of nozzle opening and closing at the same time.
Auto-centering and auto-clamping.
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |
