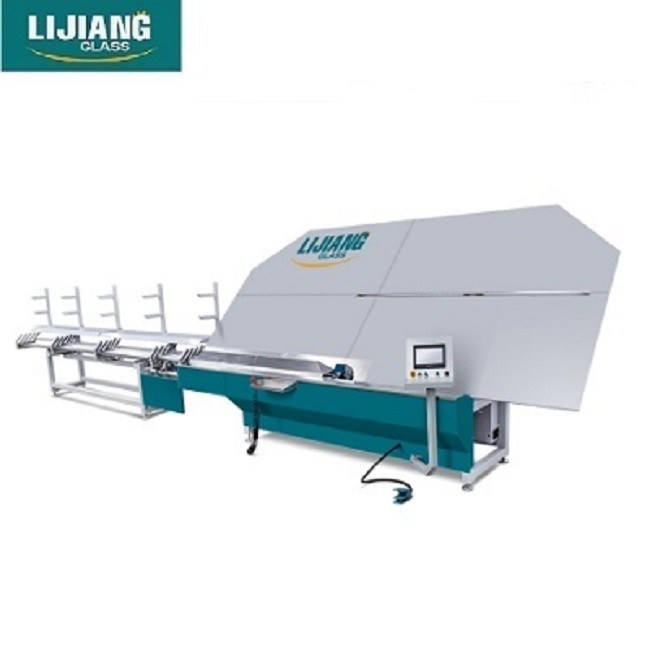

Automatic Aluminum Edge Bending Machine , Frame Bending Machine ±0.5mm

Automatic Aluminum Edge Bending Machine , Frame Bending Machine ±0.5mm
Automatic Aluminum Edge Bending Machine , Frame Bending Machine ±0.5mm Automatic Aluminum Edge Bending Machine , Frame Bending Machine ±0.5mm

Large Image :  Automatic Aluminum Edge Bending Machine , Frame Bending Machine ±0.5mm

Product Details:
Place of Origin: Jinan China
Brand Name: Lijiang-Glass
Certification: CE
Model Number: LJZW2020
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: seaworthy package
Delivery Time: 10-15 days
Supply Ability: 30 set per year

Automatic Aluminum Edge Bending Machine , Frame Bending Machine ±0.5mm

Description
Max.bending Size: 2000mm*2000mm (2500mm*2500mm) Min.bending Size: 250mm*200mm
Aluminum Spacer Width: 5.5-27mm Dimensional Error: ±0.5mm
High Light:

glass bending machine

,

industrial bending machine

Automatic spacer bending machine LJZW2020



Application



Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.



Automatic Aluminum Edge Bending Machine , Frame Bending Machine ±0.5mm 0

Equipment details

  • Adopt Siemens PLC control system
  • There are 4 Siemens servo
  • Adopt 12 sets of racks which could storage more different sizes of spacers. Use Siemens servo to change different racks.
  • Automatically cut and feed aluminum spacers
  • Bend shaped spacer frames continuously
  • Automatically avoid the connecting corner while bending and cutting
  • The machine grabs the spacer from the top instead of grabbing the spacer from bottom, solving the old-fashioned reversing problem.
  • Using industrial computer technology which could realize the on-site drawing by workers on the industrial computer and directly bending the drawn graphics.
  • The special machine hand device is used to bend big spacer frame

Automatic Aluminum Edge Bending Machine , Frame Bending Machine ±0.5mm 1



Automatic Aluminum Edge Bending Machine , Frame Bending Machine ±0.5mm 2

  • Heavy duty connectors is convenience and safety for installation and debugging

Automatic Aluminum Edge Bending Machine , Frame Bending Machine ±0.5mm 3

  • Spare parts of all machine have ID codes.

Automatic Aluminum Edge Bending Machine , Frame Bending Machine ±0.5mm 4

  • Precise bending effect, corner error less than 0.1mm.

Automatic Aluminum Edge Bending Machine , Frame Bending Machine ±0.5mm 5

  • Leading Technology
  • Spacer printing code function (Optional)

Automatic Aluminum Edge Bending Machine , Frame Bending Machine ±0.5mm 6

  • Automatic drill gas filling hole (Optional)

Automatic Aluminum Edge Bending Machine , Frame Bending Machine ±0.5mm 7

  • Printing paper label sticker function (Optional),could remove it easily.

Automatic Aluminum Edge Bending Machine , Frame Bending Machine ±0.5mm 8

  • USB input function, read the excel format file directly etc (Optional)
  • Connect to ERP system (Optional)
  • Can bend aluminum spacer ,Technoform, Alupro, Thermix, warm spacer (Swisspacer) and stainless steel ( Optional) and so on.

Automatic Aluminum Edge Bending Machine , Frame Bending Machine ±0.5mm 9

Automatic Aluminum Edge Bending Machine , Frame Bending Machine ±0.5mm 10







  • We have the special soft system which could avoid the 120mm to reduce waste. For example, if the length of the gusset is 60mm, when the program calculates the right angle, there is a gusset. When you start to bend the rectangular frame, you need firstly transport 120mm, then cut 120mm, and then step on the pedal to bend frame, so you will waste the 120mm.





Technical data

Max.bending size 2000mm*2000mm (2500mm*2500mm)
Min.bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm



Electrical parameters



NAME BRAND NAME BRAND
PLC GERMAN SIEMENS Triplet Taiwan AIRTAC
Low voltage electrical apparatus GERMAN SIEMENS Cylinder Taiwan AIRTAC
Servo motor GERMAN SIEMENS Solenoid valve Taiwan AIRTAC
Servo driver GERMAN SIEMENS Switch power Taiwan TEND
Relay JAPAN OMRON TOUCH SCREEN Taiwan WEINVIEW
Sensor KOREA AUTONICS GUIDE Taiwan TBI
