Product Details:
|
| Production Name: | Float Glass Washing Machine | Application: | Washing Float Glass And Low- E Glass |
|---|---|---|---|
| Brushes: | 6 Soft Brushes For Low-e Glass | Material: | Ss304 |
| Glass Washing Speed: | 2- 10 M/min | Glass Thickness: | 3 - 15mm |
| Low-e Glass: | Available | ||
| High Light: | industrial glass washer,vertical glass washer |
||

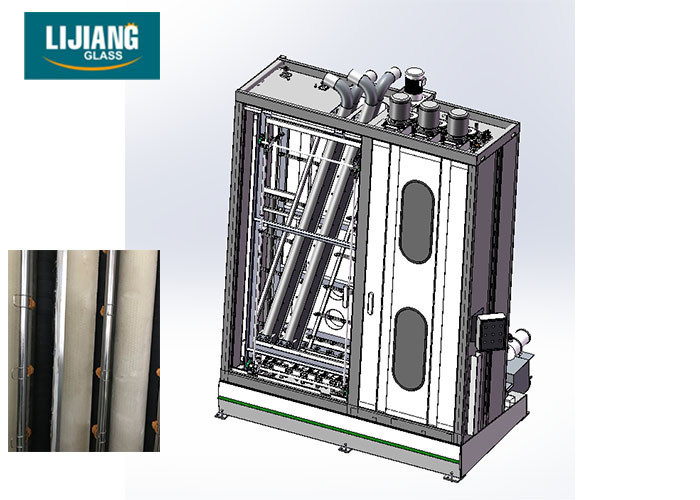

Vertical Glass Washing And Drying Machine With Italy Design Element
Details Introduction:
1. Name : Vertical washing and drying machine
2. Condition: IG Line washing machine
3. Max size : 2500mm*4000mm
4. Min size: 280* 300mm
5. Glass thickness: 3 - 15mm
6. Glass washing speed: 2-10m/min
7. Application: washing low-e glass and normal glass
Parameters:
| Max.glass size | 2500*3500mm/2200*3000mm/2000*2500mm |
| Min.glass size | 280*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 48m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:≤50μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW/27KW/24KW |
| Dimension | 23500*3500*3700mm/18350*2600*3250mm/16400*2500*3100mm |
| Weight | 6500kg/6000kg/5200kg |
1. Low-E glass coating surface detection and washing available.
2. 3 pair of soft nylon brushes.
3. Brushes distance be adjustable.
4. Two independent water tanks and water cycle.
5. Two stainless steel pumps.
6. Water adding automatically.
7. High air pressing and low noise blower.
8. Air knife angle be adjustable.
9. Stainless steel cover for whole washing and drying section.
10. Frequency speed control.
11. Cold light inspection for output conveyor.
