Product Details:
|
| Color: | Customer's Request | Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm |
|---|---|---|---|
| Filling Aluminum Frame's Minimal Size: | 300mm*250mm | Article Aluminum Specifications: | 5.5-24mm |
| Air Source: | ≥0.65MPa | Weight: | 420kg |
| Meas: | 1600*1300*3600mm | Power: | 1.8kw |
| Function: | Filling Desiccant To Aluminium Spacer | Voltage: | Can Be Customized To Local Voltage |
| Model: | Automatic | ||
| High Light: | desiccant filler,glass filling machine |
||

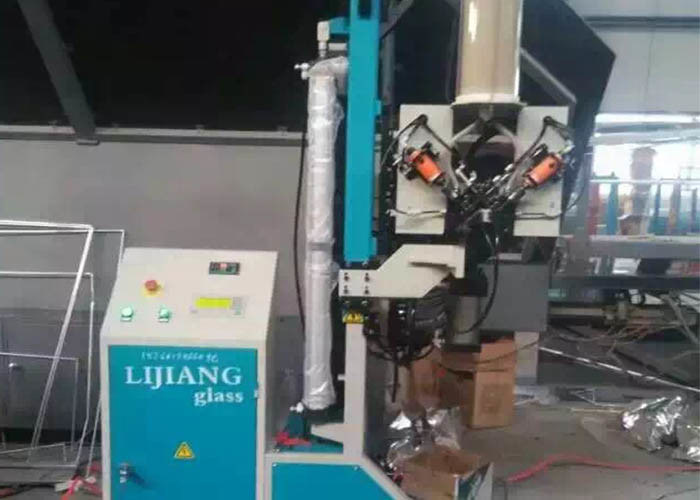

Full Automatic Desiccant Filling Machine For Hollow Glass Making For Large Particle Molecular Sieve With Touch Screen
APPLICATION
Full Automatic Desiccant Filling Machine For Hollow Glass Making For Large Particle Molecular Sieve With Touch Screen can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant. Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant.
Full Automatic Desiccant Filling Machine For Hollow Glass Making For Large Particle Molecular Sieve With Touch Screen improves quality of insulating glass, it’s a necessary equipment in the process of hollow glasses.
Main Features
1).PLC system to control the operation.
2).This machine is suitable to fill the spacer shaped by the automatic spacer bending machine and the Normal straight pin spacer.
3).The filling height can be adjusted according to the size of the aluminum spacer.
4).It can feed the needed desiccant automatically.
5).It owns the unique and advanced feeding device.
6).The key component are supplied by international well-known manufactures.
Main Technical Parameter
| Diameter of the desiccant |
0.5-0.9mm |
| Width of the spacer bar | 5.5-24mm |
| Max processable size | 2400*2400mm |
| Air Pressure | 0.6~0.8MPA |
| Power Supply | 220V 50HZ 1KW |
| Dimension |
1300mm*1100mm*3650mm |
Machine details
IG production line:http://www.lijiang-glass.com/index.php?m=content&c=index&a=show&catid=10&id=83
Bending machine:http://www.lijiang-glass.com/index.php?m=content&c=index&a=show&catid=10&id=82
Filling machine:http://www.lijiang-glass.com/index.php?m=content&c=index&a=show&catid=10&id=81
Butyl extruder:http://www.lijiang-glass.com/index.php?m=content&c=index&a=show&catid=10&id=80
Sealing robot:http://www.lijiang-glass.com/index.php?m=content&c=index&a=show&catid=10&id=79
* Inquiry and consulting support.
* View our Factory and try our machines
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas
