Product Details:
Place of Origin: JINAN,CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJTJ2540
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Container
Delivery Time: 60 days
Supply Ability: 50 sets per year

Vertical Insulating Glass Production Line Sealing Machine 0.6-0.8 MPa Air Pressure

Description
Production Name: Insulating Glass Sealing Robot Min Glass Size: 300mm*300mm
Max Glass Szie: 2500mm*4500mm Control System: Servo Motor
Stepped Glass: Available Sealicion Glue: Available
Polysulfide Glue: Available
High Light:

glass sealing machine

,

silicone extruder machine

Automatic Sealing Line Sealant Extruder Sealing Robot Machine For Insulating Glass Processing Machine



Application

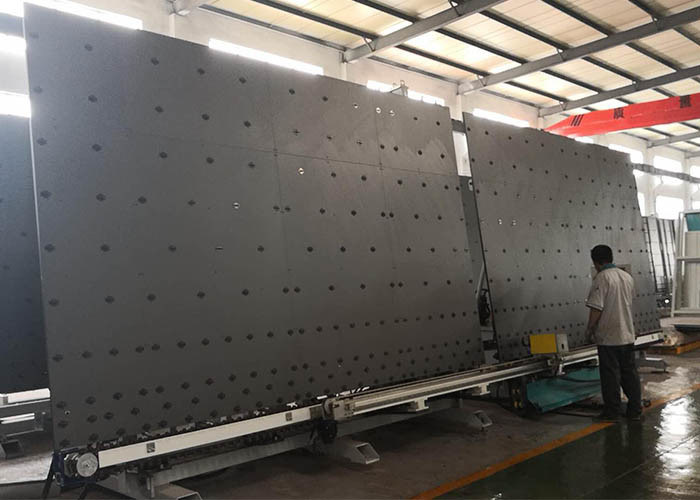

LJTJ2540 is the latest automatic vertical insulating glass sealing robot. It is used to coat double glazed glass through mixing the A component and B component together according to a certain percentage. Applied to double/triple/shaped and stepped glasses (Optional) with stable performance and easy operation.



Max.glass size 2500*4000mm
Min.glass size 300*300mm
Glass thickness 12-56mm
Working speed 5-40m/min
Air pressure 0.6-0.8MPa
Squeeze pressure <350kg/m³
Plane angle 6°- 9°
Max glass weight 400kg
Voltage power 380V 12kw
Overall dimension 8700mm*2000mm*3500mm





Features:



1. CNC control system, the parameter setting is easy and convinient.



2. Touch screen operation interface automatically monitor machine running state.



3. Four axis servo motor movement ensures precise position. Free change of glass running direction enables easy connection of any production line.



4. Automatically test glass size and no need changing wheel for uneven width film removing.



5. Horizontal wheel working method can decrease the wheel wearing.



6. Linear slide unit enable to get good film removing result.



7. Intelligent memory for the same glass size, high efficiency.



8. Automatically adjust the air pressure of wheel moving.



9. Special shape glass processing optional.
