Product Details:
|
| Color: | Customer’s Request | Coating Speed: | 47m/min |
|---|---|---|---|
| Aluminum Spacer Size: | 4-30mm | Air Source: | ≥0.6MPa |
| Supply Sealant Pressure: | <100kg/cm2 | Model: | Automatic Machine |
| Dimension: | 2600*680*1100mm | Voltage: | 380V 50HZ |
| Weight: | 650 Kg | Function: | Coating Butyl On Aluminum Spacer |
| High Light: | hot melt butyl extruder,butyl silicone sealant |
||

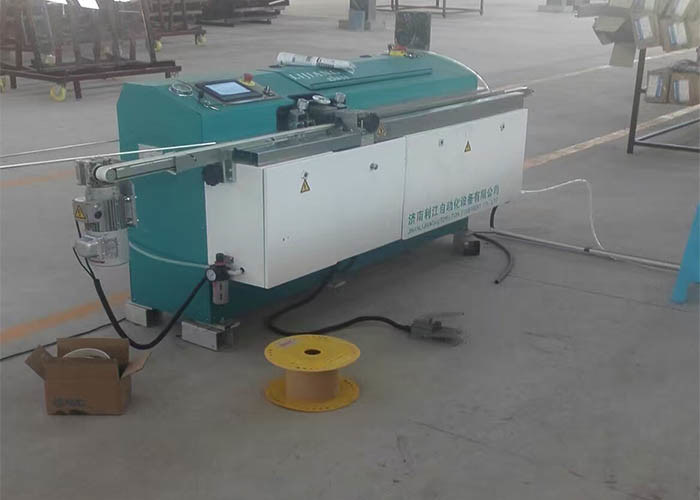

Butyl sealant extruder machine for hollow glass making with touch screen with spacer width identify device
Main features
1.Hydralic and pneumatic supercharging pump ,German Maxmator brand, German HAWE brand ,high pressure resistance ,keep the butyl well proportioned
2.Auto-centring and auto clamping
3.the bigger wheel help to coat the circular arc (curved spacer)
4.The wheel material is Teflon brand ,non-stick coating
5.The crossbeam height is easy to adjust,we can control the height of butyl
6.The coating speed is up to 47m/min,save butyl is up to 40％
7.Alarm device when out of butyl and easy to load butyl
8.Pre-heading function,set a regular time ahead of working time
9.Auto-measure the width of spacer,so auto-adjust the distance of nozzle
Technical Data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
Factory show
Machine pictures
