650 Kg Low Noise Butyl Extruder 25 MPa Pre Heating Function Long Life Cycle

650 Kg Low Noise Butyl Extruder 25 MPa Pre Heating Function Long Life Cycle
650 Kg Low Noise Butyl Extruder 25 MPa Pre Heating Function Long Life Cycle

Large Image :  650 Kg Low Noise Butyl Extruder 25 MPa Pre Heating Function Long Life Cycle

Product Details:
Place of Origin: Jinan, China
Brand Name: JINAN LIJIANG
Certification: CE certificate
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per Month

650 Kg Low Noise Butyl Extruder 25 MPa Pre Heating Function Long Life Cycle

Description
Name: Automatic Butyl Extruder Machine Aluminum Spacer Width: 4-27mm
Speed: 0-47m/min Temperature: 110℃ - 140℃
Type: IG Machine Rectangle Frame: Available
Roud Frame: Available Arc Frame: Available
Warm Spacer: Available Alupro Spacer: Available
High Light:

hot melt butyl extruder

,

butyl silicone sealant

High speed butyl extruder machine for insulating glass processing with spacer width identify device with touch screen





Features:

  • The system pressure of the pump can up to 25MPa,the system pressure is stable with glue evenly
  • The roller system is divided into tree parts: the front roller, the rear roller and Arc roller.The front roller and the rear roller are used for rectangular frame, the Arc roller is used for circular frame.
  • Automatic alarm when the glue is used out
  • When changing the glue, retreat cylinder and open the intake valve, then blow air into the cylinder quickly,in order to backward the cylinder quickly.
  • Pre-heating function,set a regular time of working time
  • Extend the time of turn off which can improve using life
  • Recognize the aluminum spacer size automatically and adjustable coating speed
  • Quickly coating speed,can up to 47m/min
  • Little glue,high-Q operation
  • Standard operation with low power consumption,low noise
  • Easy operation, low maintenance design



Technical Data



Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 4-30mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5KW, 50HZ
Dimension 2600×680×1100mm(L×W×H)
Weight 650kg



Main components



Name Brand Original
PLC KINCO China
Valve HAWE German
Low voltage electrical apparatus SIEMENS German
Hydraulic and pneumatic supercharging system MAXIMATOR German
Frequency converter KINCO China
Pneumatic components(cylinder/valve) ARTAC Taiwan
Quick exhaust valve/Vacuum generator SMC Japan SMC
Travel light OMRON Japan
Optical fiber OMRON Japan



Machine details

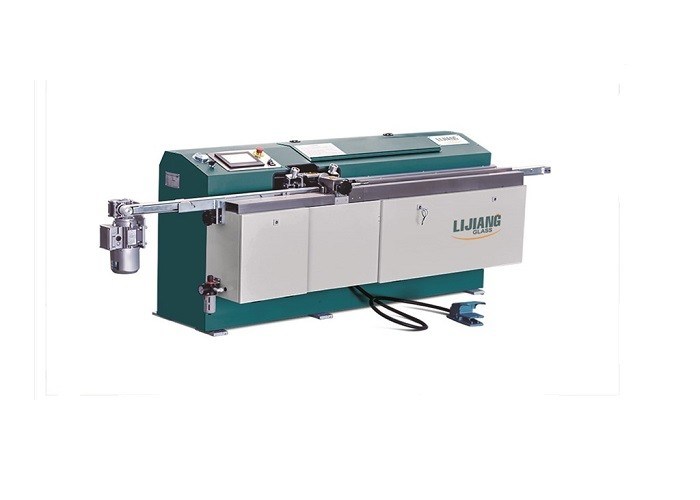

650 Kg Low Noise Butyl Extruder 25 MPa Pre Heating Function Long Life Cycle 0



650 Kg Low Noise Butyl Extruder 25 MPa Pre Heating Function Long Life Cycle 1

650 Kg Low Noise Butyl Extruder 25 MPa Pre Heating Function Long Life Cycle 2
