Product Details:
|
| Name: | Butyl Aluminum Spacer For Insulating Glass | Max Size: | Jumbo |
|---|---|---|---|
| Advantage: | Any Shape Can Be Process | ||
| High Light: | Insulating Glass,Aluminum Spacer Double Glazing Glass Machine,Any Shape Butyl Aluminum Spacer |
||

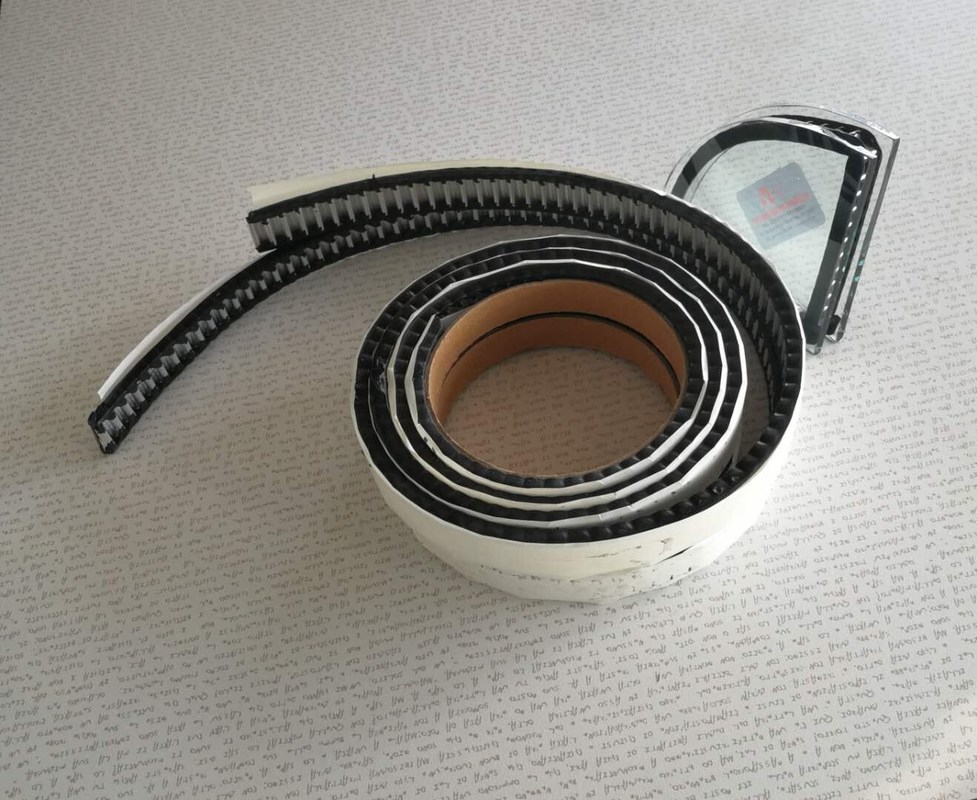

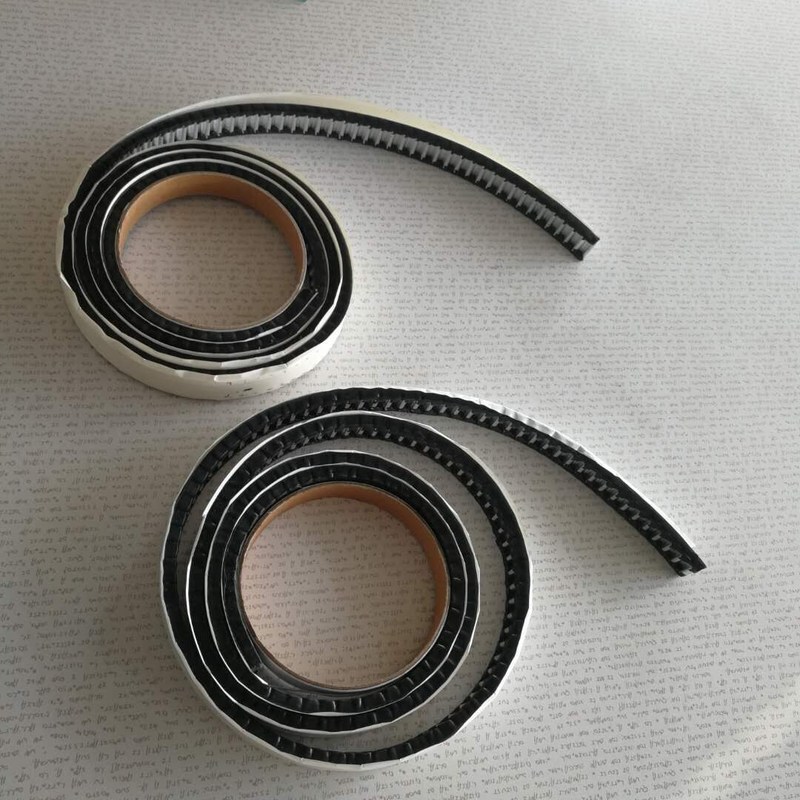

Butyl Aluminum Spacer for Insulating Glass

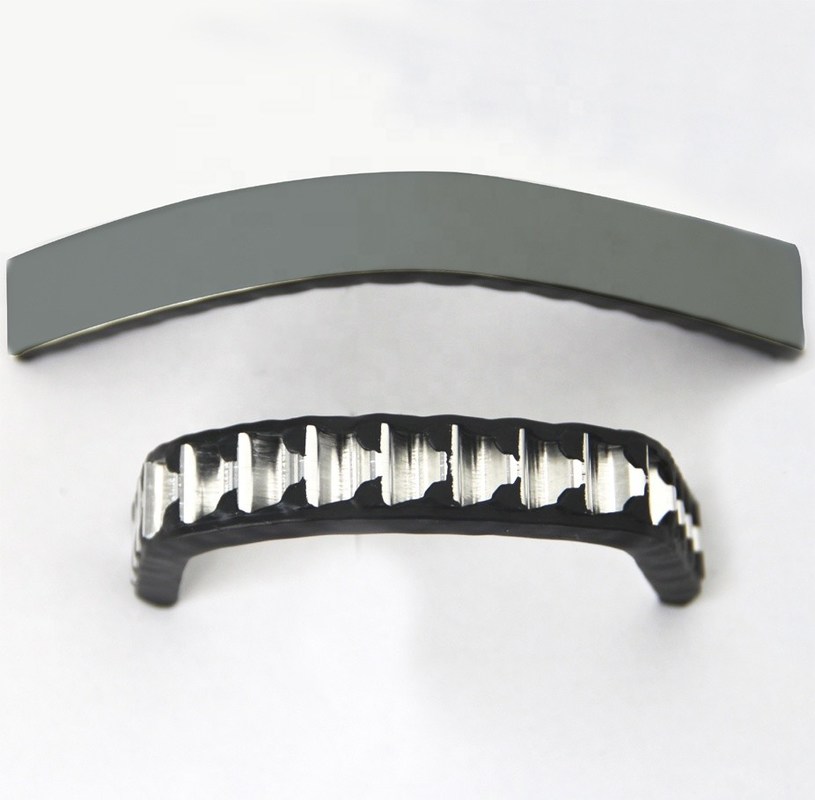

Butyl Aluminum Spacer for Insulating Glass is a new product ,it Summarize the advantages and disadvantages of traditional products to optimize and improved products according to market demands.the surface is made of 3003 alloy aluminum strip, Internal use of polymer PVC material,3A molecular sieves, butyl silicone sealant.
Service support
1.24 hours technical supporting by emails.
2. 24 hours calling service & online service.
3. Oversea door–to–door service available.
4. User manual and detailed operating video1CD available.
Quality assurance Storage period:
Vacuum sealed for 3 years, made into insulating glass according to the operation manual, warranty for 10 years
Packaging
Vacuum, Roll then packed in Carton 12cartons1pallet(big) 20cartons1pallet(small) 144 big cartons in 20'container. 176 small cartons in 20'container.
Advantage:
Better sealing:Using german imported butyl rubber ,the sealing will be good.
Better water vapor barrier: Extra long water vapor barrier, it prevent the water vapor to coming in.
Better production efficiency , can process various shapes of anisotropic insulating glass.
Good air tightness : Polymer binder prevent water vapor to permeating. Good anti–high temperature perfermance.
Good resistance to low temperature. Good anti–aging performance.
Use Manufacturing building doors and windows,Train,Bus,insulating glass ,insulating door, shutter,Refrigeration equipment and so on. Using method and attention All the glass should be dry and clean. The insulating glass should be made by the following steps.
1. Putting the spacer onto the corner of one glass, then making the spacer straight, at the same time keeping the spacer around the surface of the glass, at the end, reserved 2.5mm– 3.0mm to the edge of the glass and the spacer should be reserved about 20mm more joint the pact pressing the joint, making no space in the circle.
2. Then putting another glass onto the one which has the spacer above, making sure the two pieces of glass are mutual alignment in both vertical and horizonal.
3. Putting them into the hot press machine with the temperature between 110–140Š inside and 50~60Šthe outlet.
4. According to the structure requirement of the insulating glass, two component silicone sealant could be putting outside of the spacer. Then a piece of insulating glass should come out.
5. The butyl spacer must be carried out in accordance with this attention otherwise may cause the seal leakage.
Keywords: warm edge spacer.flexible spacer bar.rubber spacer with aluminum
Use Manufacturing building doors and windows,Train,Bus,insulating glass ,insulating door, shutter,Refrigeration equipment and so on.
| Raw material options | ||||||
| No. | Material name | Material | producing area | composition | Technical requirements | |
| 1 | Inner sealant | Butyl rubber | China | butyl sealant. Calcium powder,polyisobutylene | Q/PHX001-2014 | |
| 2 | External sealant | Polymer adhesive | Germany | BASF polyisobutylene,butyl sealant, Calcium | GB/T 19187-2003 | |
| 3 | Aluninum strip | 3003 aluminum alloy | China | AL-Mn | GB/T 3190 1996 EN AW 3003/AlMnlCu EN 573 3-1994 | |
| 4 | Aluminum foil film | Aluninum foil film | China | Aluainum foil membrane | GB/T 28118-2011 | |
| 5 | Molecular seive | 3A nolecular sieve | China | 2/3K20•1/3Na20 •Al203 •2Si02 •9/2H20 | GB/T 10504 2017 | |
| 6 | heat-insulating film | PVC | China | PVC | GB3830-83 | |
| Colour Gold, Silver, Black | ||||||
| Specifications and technical parameters | ||||||
| size (mm) | width (mm) | thickness (mm) | m/carton | weight/ carton | carton | |
| B ± | A ± | m + | kg ± | big carton | ||
| 6 | 8.0 ±0.1 | 6.5 ±0.1 | 800 +0.5 | 60.50 ±1.5 | ||
| 7 | 9.0 ±0.1 | 6.5 ±0.1 | 760 +0.5 | 62.10 ±1.5 | carton size | L*W*H:570*470*570 |
| 8 | 10.0 ±0.1 | 6.5 ±0.1 | 700 +0.5 | 62.40 ±1.5 | 20'GP container | 144 carton with pallet |
| 9 | 11.0 ±0.1 | 6.5 ±0.1 | 670 +0.5 | 63.20 ±1.5 | size of roll | Ø535x465 |
| 10 | 12.0 ±0.1 | 6.7 ±0.1 | 630 +0.5 | 62.50 ±1.5 | center diameter | Ø37 |
| 11 | 13.0 ±0.1 | 6.7 ±0.1 | 600 +0.5 | 66.50 ±1.5 | small carton | |
| 12 | 14.0 ±0.1 | 6.7 ±0.1 | 550 +0.5 | 64.30 ±1.5 | ||
| 13 | 15.0 ±0.1 | 7.0 ±0.1 | 520 +0.5 | 64.30 ±1.5 | carton size | L*W*H:470*460*470 |
| 14 | 16.0 ±0.1 | 7.0 ±0.1 | 500 +0.5 | 65.50 +1.5 | 20'GP container | 176carton with pallet |
| 15 | 17.0 ±0.1 | 7.0 ±0.1 | 440 +0.5 | 62.20 ±1.5 | size of roll | Ø465x465 |
| 16 | 18.0 ±0.1 | 7.0 ±0.1 | 430 +0.5 | 63.80 ±1.5 | center diameter | Ø37 |
| special sizes can be customized, MOQ 20 thousand meters. | ||||||
