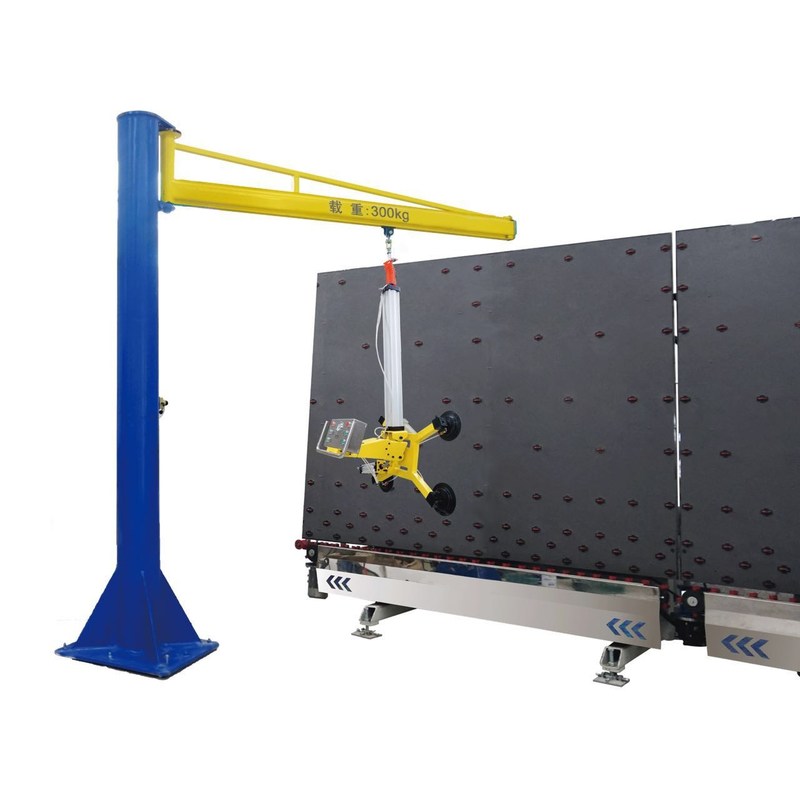

Lifting Cantilever Crane 1000KG Insulating Glass Production Line and Glass Crane with four suckers

Lifting Cantilever Crane 1000KG Insulating Glass Production Line and Glass Crane with four suckers
Lifting Cantilever Crane 1000KG Insulating Glass Production Line and Glass Crane with four suckers Lifting Cantilever Crane 1000KG Insulating Glass Production Line and Glass Crane with four suckers Lifting Cantilever Crane 1000KG Insulating Glass Production Line and Glass Crane with four suckers

Large Image :  Lifting Cantilever Crane 1000KG Insulating Glass Production Line and Glass Crane with four suckers

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJXJ1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 10days
Payment Terms: L/C, T/T
Supply Ability: 20set/month

Lifting Cantilever Crane 1000KG Insulating Glass Production Line and Glass Crane with four suckers

Description
Name: Glass Cantilever Crane Advantage: With Lifting Sucker
Max Lifting Weight: 1000KG

Customization Glass Cantilever Crane with four lifting suckers 1000KG LJXJ1000

Main Features

It can select DC chaging vacuum pump,equipped with battery device.

-Maximum bearing capacity is 1000kgs (10 vacuum cups), Max. Glass size can reach to 8m (The lifter with post can reach 3.9 meter)

-suitable for high-temperature glass

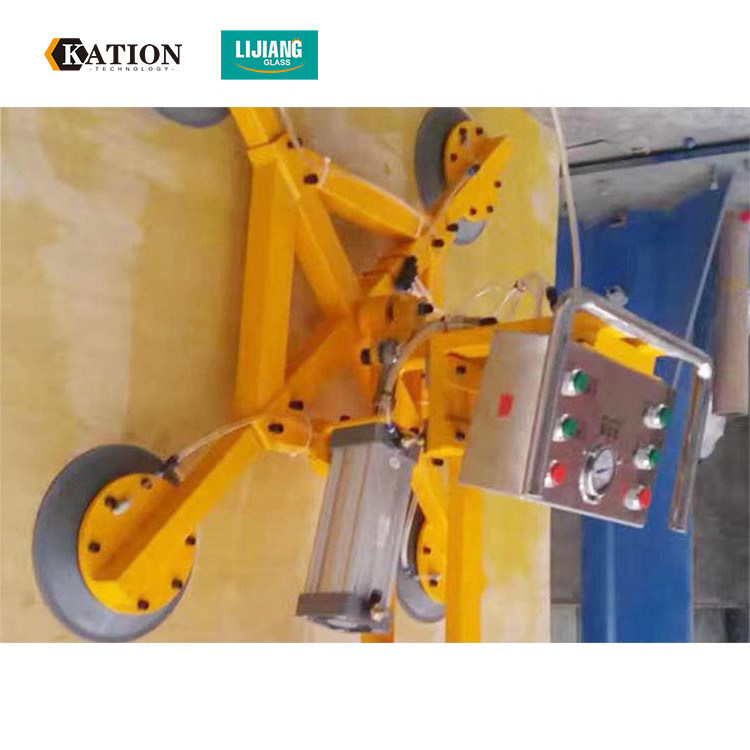

Glass Cantilever Crane with lifting sucker

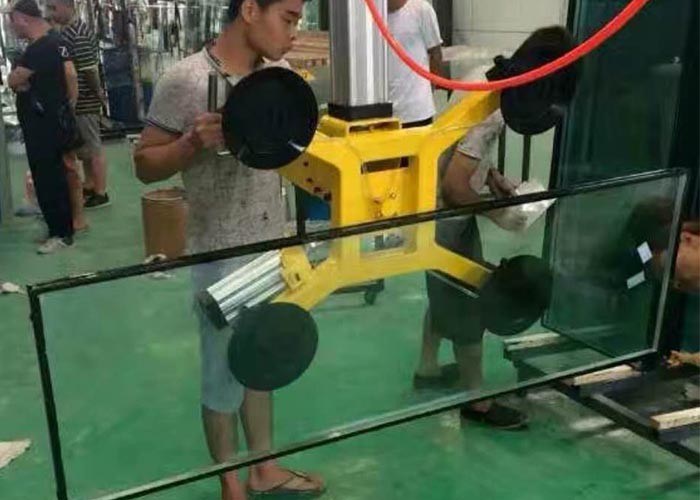

1. This vacuum glass lifter is for handling insulating glass sheet.
2. This glass lifter is able to lift the glass sheet with 1000kg
3. It is equip with 5 suckers. But the sucker can be add according to need of the client.
4. The equipment is Stable, Easy to use and safe.
5. The vacuum lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.



Lifting Cantilever Crane 1000KG Insulating Glass Production Line and Glass Crane with four suckers 0

Parameters:

Max Glass weight 800KG
Rotation angle

Rotate 180

Left and Right

Up and Down

Suction cups  4 Pieces
Cup Materials Silicone
Sliding method Manual
Column height 4 meters Gas storage function
Arm length 4 meters
Air Control parts Airtac


Useing For

- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.



Lifting Cantilever Crane 1000KG Insulating Glass Production Line and Glass Crane with four suckers 1

Lifting Cantilever Crane 1000KG Insulating Glass Production Line and Glass Crane with four suckers 2

Product Name
glass crane
Dimension
(L*W*H)

900*730*240mm
Color
Yellow
Power system
DC12V
Charger
AC110/220V
Rotate degree
360° (manual)
Flip degree
90° (manual)
Usage
Glass lifting
Sucker quantity
4
Sucker size
φ300mm


Lifting Cantilever Crane 1000KG Insulating Glass Production Line and Glass Crane with four suckers 3

Vertical Insulating Glass Sealing Robot LJTJ2025

Lifting Cantilever Crane 1000KG Insulating Glass Production Line and Glass Crane with four suckers 4



Main feature

• Whole machine adopt man-machine interface, the operation is more convenient and intuition with the simplified thinking design interface.

• The glass edge and corner is full without air bubbles, smooth surface, no need to pare the corner the condition that the glass are cut levelly and without dislocation after combined.

• High automation, high efficiency, suitable for glass deep processing enterprise to use.

• Using two sets of independent sealant supply system( including the mixing device), two kinds of sealants switch in one-key operation easily.(optional)

• The third section can pre-store glass to improve the efficiency effectively

• Servo control system adopts world famous brand(Japan Anchuan), the performance is stable

• Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning

• The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability.

• Support three layer glass sealant



Technical data

Max. glass size 2000*2500mm
Min. glass size 300*300mm
Glass thickness 12-50mm
Working speed 5-40m/min
Air pressure ≥0.6MPa
Squeeze pressure 32MPa
Voltage power 380V 12kw
Overall dimension 8000*1500*2700mm



Electrical parameters

NAME ORIGIN BRAND
Servo motor Japan YASKAWA
Servo driver Japan YASKAWA
CPU Japan YASKAWA
Low voltage component Germany SIEMENS
Guideway Taiwan HIWIN
Switching power supply Taiwan MW
Sensor switch Korea AUTONICS
Pneumatic component Japan SMC
Touch screen China GAOSHAN
Servo motor Japan YASKAWA
Servo driver Japan YASKAWA







Lifting Cantilever Crane 1000KG Insulating Glass Production Line and Glass Crane with four suckers 5

Lifting Cantilever Crane 1000KG Insulating Glass Production Line and Glass Crane with four suckers 6Lifting Cantilever Crane 1000KG Insulating Glass Production Line and Glass Crane with four suckers 7
